Objective
The question of calcium carbonate solubility in water is one that interests many OLI users, as the software results appear to differ field observations. This article clarifies this discrepancy using OLI Studio: Stream Analyzer.
Disclaimer: The user interface, calculations, and results displayed in this article are from OLI Studio: Stream Analyzer Version 12.0.0. Other software versions may appear different or present slightly distinct results due to continual developments to the software and thermodynamic databanks.
Analysis in OLI Studio: Stream Analyzer
In OLI Studio: Stream Analyzer, the predictions indicate that calcite (CaCO3) solubility increases with temperature, which seems to contradict typical field observations.
However, in real-world conditions, carbon dioxide (CO2) in the atmosphere (~300 ppm) reacts with calcite, affecting its solubility. To align the calculations with experimental data, users need to include this CO2 component.
Let’s explore how to do this in OLI Studio: Stream Analyzer.
Stream Analyzer Calculation Without Air
First, we will perform the calculation without considering the presence of air.
- Open a new file in OLI Studio: Stream Analyzer. Select the MSE thermodynamic framework.
- Add a new stream and name it “CaCO3 in Water – No Air.”
- Keep the default parameters and add CaCO3 as an inflow.
- Add a Survey calculation, name it “No Air – Temp Survey,” and select Survey by > Temperature.
- In the “Specs” window, choose a temperature range of 0-90°C, with a step size of 5°C. Click “OK” to save these settings.

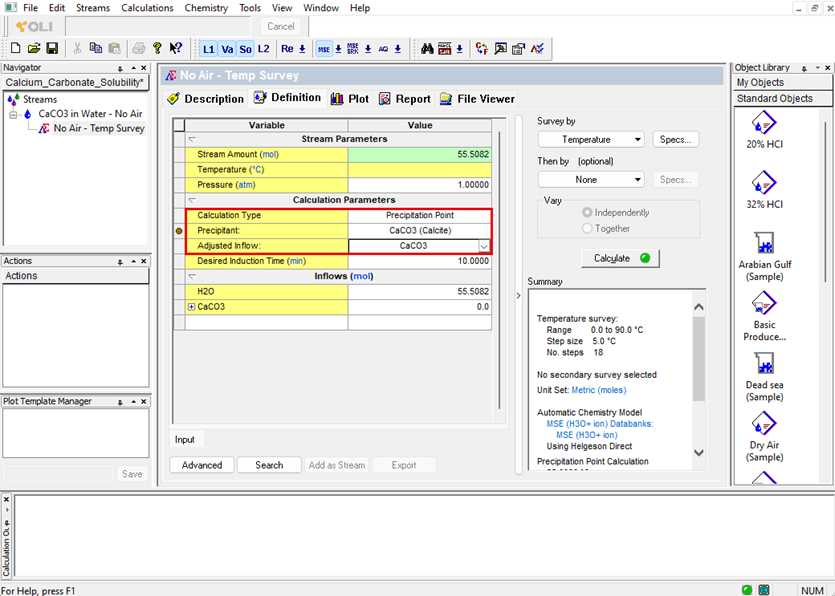

- Set the “Calculation Type” to “Precipitation Point.” Select “CaCO3 (Calcite)” as the Precipitant, and “CaCO3” as the Adjusted Inflow.
- Click the “Calculate” button.
- Navigate to the “Plot” tab to view the results. The plot will show Temperature on the x-axis and the required CaCO3 inflow to reach the precipitation point on the y-axis.
This graph demonstrates a slight increase in calcite solubility with temperature.
Stream Analyzer Calculation With Air
Next, we will perform the calculation with air included.
- Ensure the Object Library is visible by navigating to View > Toolbars > check Object Library.
- Double-click on the “Dry Air (Sample)” object in the Object Library to add it as a new stream.
- Create a new stream and name it “H2O.” Keep all the default parameters and inflows.

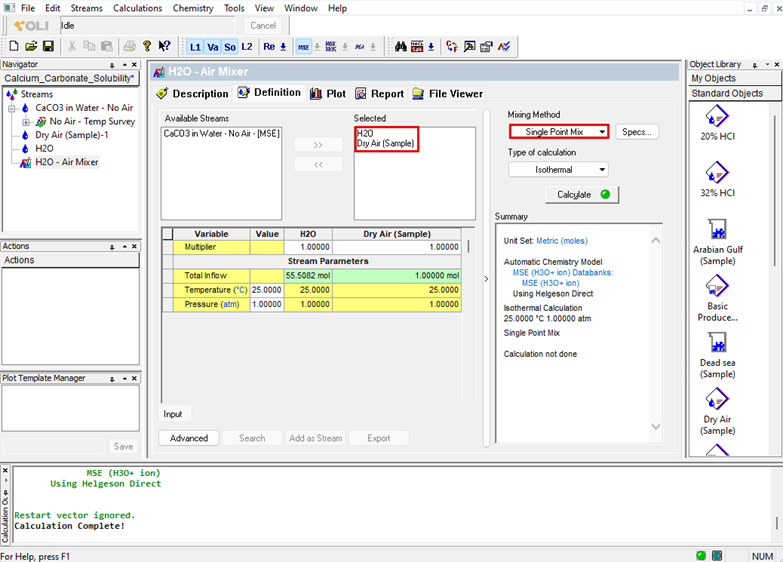

- Add a mixer and name it “H2O – Air Mixer.” Select “H2O – [MSE]” and “Dry Air (Sample) – [MSE]” from the Available Streams list. Keep all default properties and choose “Single Point Mix” as the Mixing Method.
- Press the “Calculate” button, and then “Add as Stream.” Change the Name to “H2O-Air Mix” and click “OK” to save the output as a new stream.

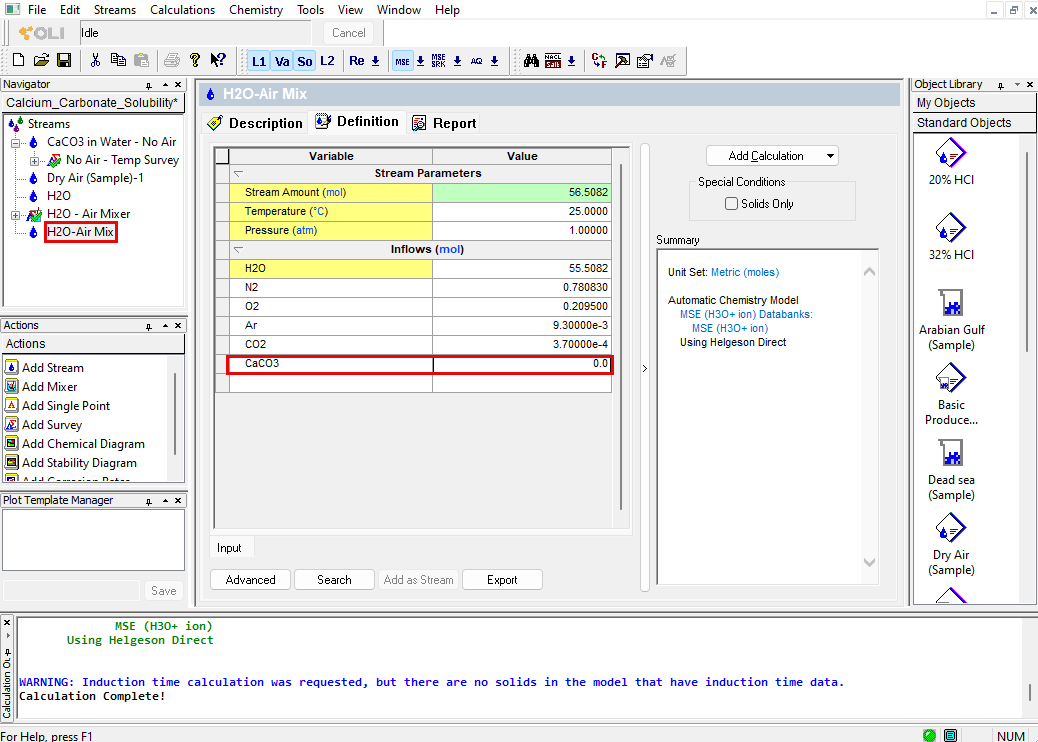

- Select the “H2O-Air Mix” stream in the Navigator Panel. Add CaCO3 to the inflows.

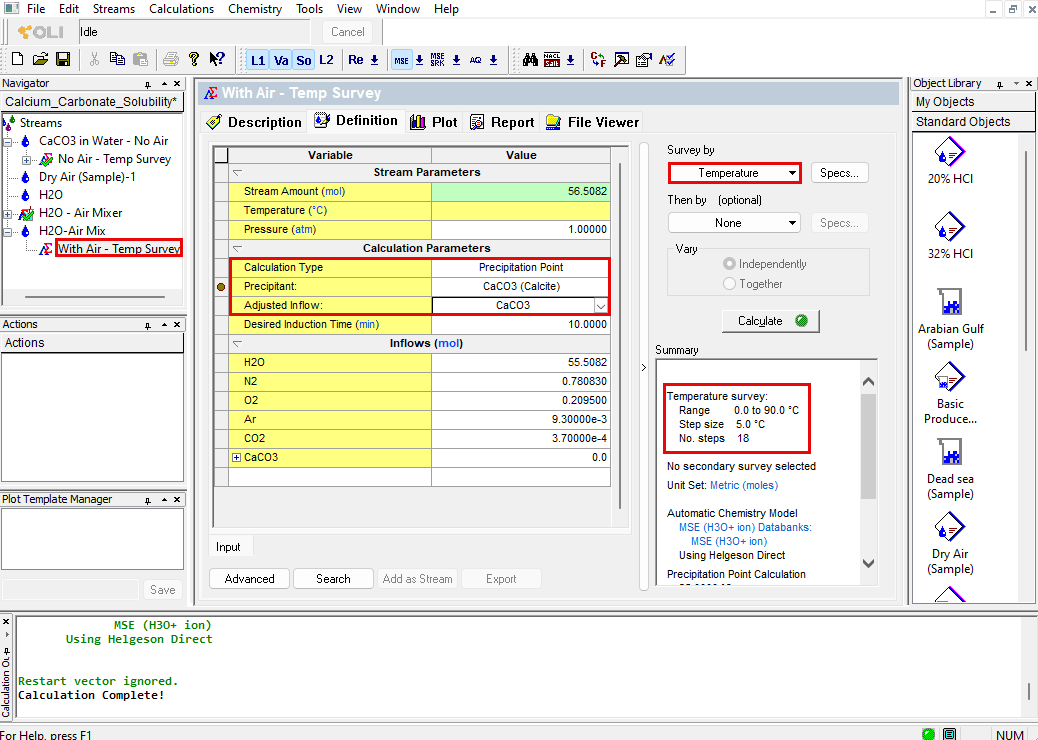

- Add a Survey calculation and name it “With Air – Temp Survey.” Follow the same steps as before: select Survey by > Temperature. In the “Specs” window, choose a temperature range of 0-90°C with a step size of 5°C. Set the “Calculation Type” to “Precipitation Point.” Select “CaCO3 (Calcite)” as the Precipitant, and “CaCO3” as the Adjusted Inflow.
- Click the “Calculate” button.

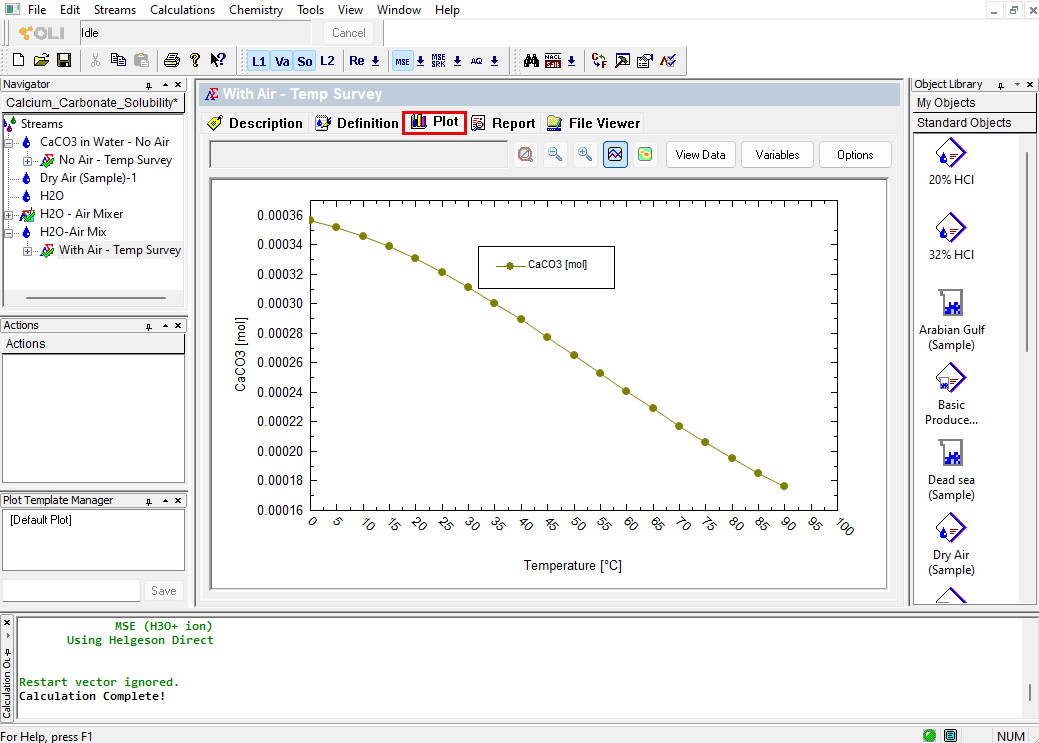

- Navigate to the “Plot” tab to view the results. The plot will show Temperature on the x-axis and the required CaCO3 inflow to reach the precipitation point on the y-axis.
By accounting for the presence of atmospheric CO2 in the system, the calculation results align with field observations of decreased solubility with increased temperature. This trend is supported by the following study:
Coto B., Martos C., Pena J. L., Rodriguez R., Pastor G., "Effects in the Solubility of CaCO3: Experimental Study and Model Description", Fluid Phase Equilibria, 324, 1-7, 2012.
OLI Data Validation Plot

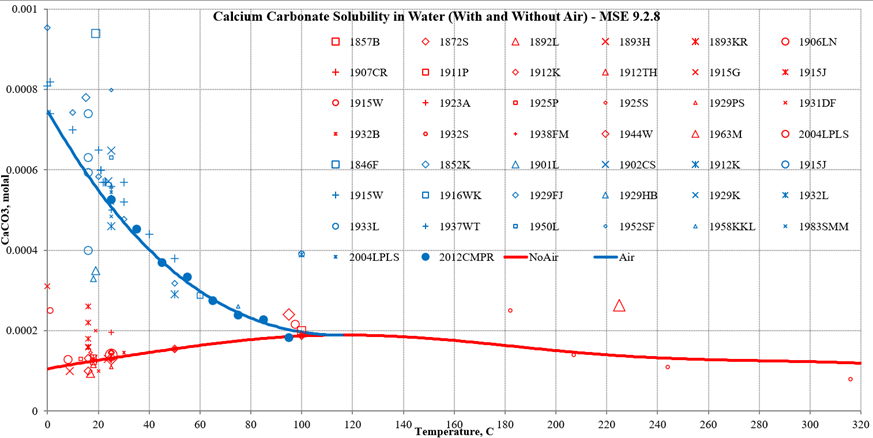

The validation plot below compares OLI’s predictions with experimental data for CaCO3 solubility in water, both with and without air. This plot shows strong agreement between the software predictions and the empirical data.
Conclusion
Calcite solubility varies depending on whether air is present, due to reactions with atmospheric CO2. OLI Studio: Stream Analyzer enables users to investigate these chemical behaviors effectively.
